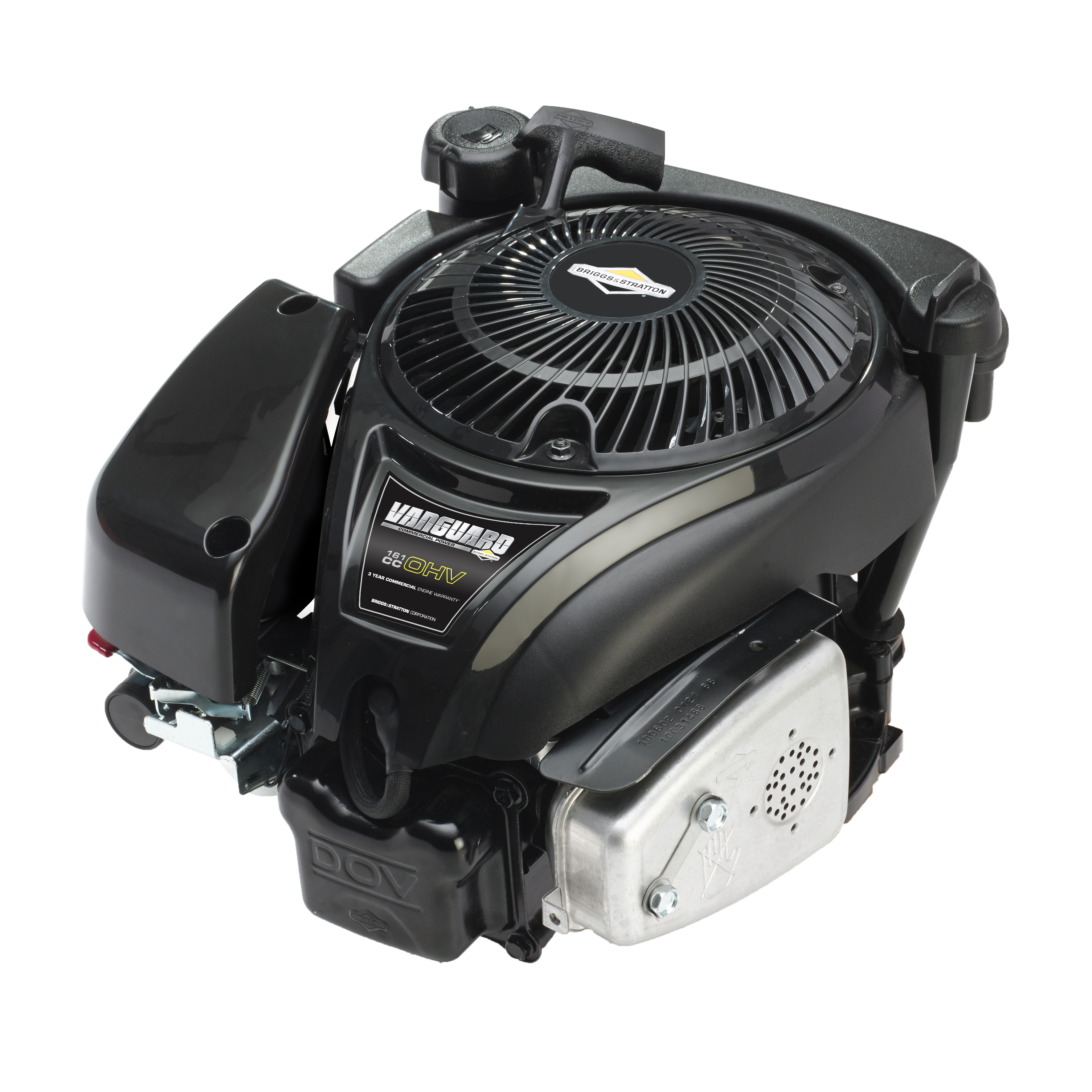

Vanguard™ 161cc

Vanguard™ 161cc

Single cylinder, DOV® (Direct Overhead Valve), featuring ReadyStart® which sets the standard for easy starting. This innovative breakthrough starting system eliminates the need to manually prime and choke the walk-behind lawnmower engine before starting.

9.5

Gross Torque (Nm) @ 3060 rpm

161

Displacement (cc)

Features

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
100802
Engine Configuration
Single cylinder, DOV® (Direct Overhead Valve), 4-stroke, air-cooled
Gross Torque* (Nm)
9.5
Engine Displacement (cc)
161
Cylinder
Cast Iron Sleeve
Bore (mm)
64.0
Stroke (mm)
50.0
Fuel Tank Capacity (L)
1.0
Oil Capacity (L)
0.60
Weight (kg)
12.7
Length (mm)
369
Width (mm)
325
Height (mm)
254
Limited Commercial Warranty †
3 Years
Marketing Warranty
3 Year
Marketing Oil Capacity
0.6

*Power levels are stated gross torque at 2600rpm per SAE J1940 as rated by Briggs & Stratton.

†See briggsandstratton.com for warranty details.
