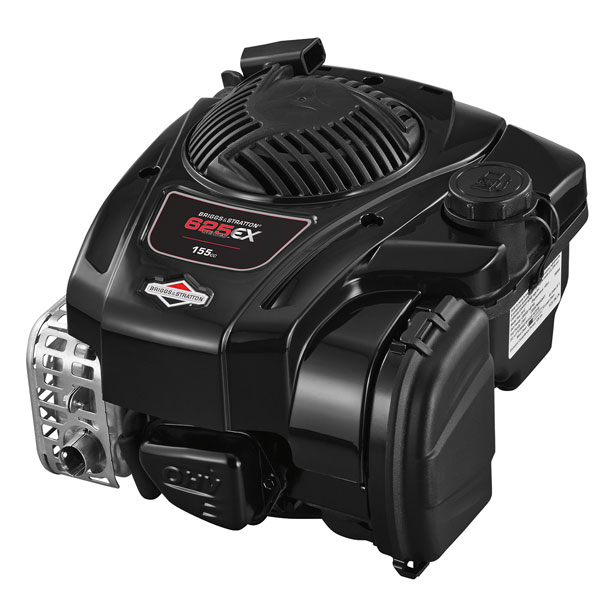

    625EX Series™

    625EX Series

    625EX Series™

    The 600E SERIES™ engine family is one of the best selling walk-behind lawnmower engine families of all time. Designed to deliver unprecedented reliability and performance this SERIES of engines has established themselves as the preferred engine of choice. The 600E SERIES engines are ideal to power lawnmowers for gardens up to 1000 square meters.

    8.5

    Gross Torque (Nm) @ 3060 rpm

    150

    Displacement (cc)

    1.0

    Fuel Tank Capacity (L)

    Gas

    Fuel Type
    Feature

    Features

    Magnetron® Electronic Ignition

    Fast, reliable and maintenance-free starting.

    Float Feed Carburetor

    Optimized fuel delivery for improved startability and superior performance.

    Specifications

    Only 2 products can be compared at once. Please remove one of your selections to compare this product.

    Only 3 products can be compared at once. Please remove one of your selections to compare this product.

    At least one product must be displayed. Please select another option to remove this product

    Model Number
    093J
    Engine Configuration
    Single cylinder, OHV (Overhead Valve), 4-stroke, air-cooled
    Gross Torque* (Nm)
    8.5
    Engine Displacement (cc)
    150
    Cylinder
    Aluminium
    Bore (mm)
    65.6
    Stroke (mm)
    44.45
    Fuel Tank Capacity (L)
    1.0
    Oil Capacity (L)
    0.44
    Weight (kg)
    8.2
    Length (mm)
    351
    Width (mm)
    308
    Height (mm)
    249
    Limited Consumer Warranty †
    2 Years
    Limited Commercial Warranty †
    90 Days

    *Power levels are stated gross torque at 2600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.
