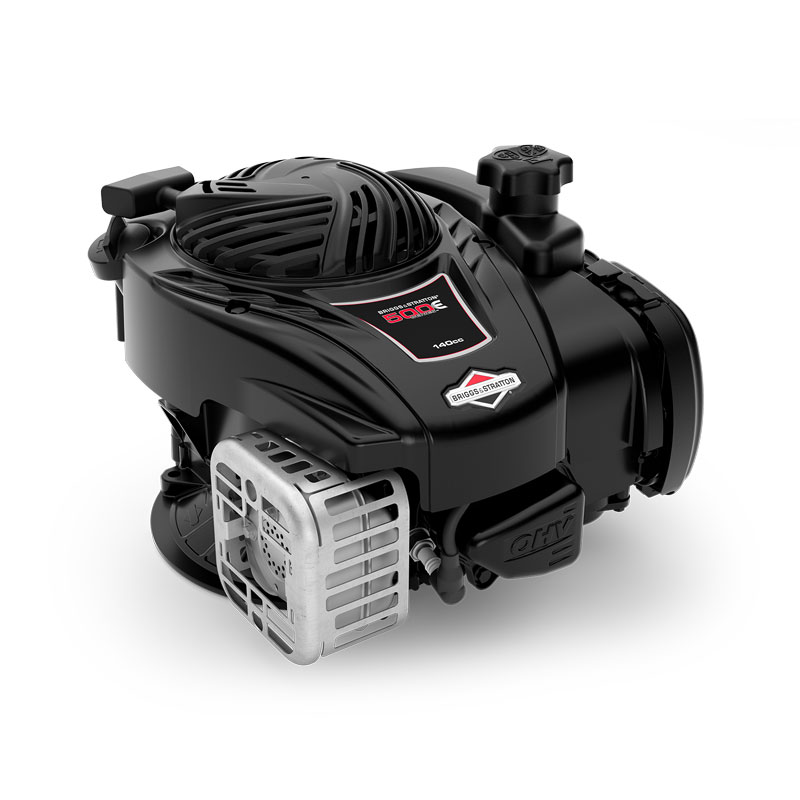

500E Series™
500E Series™
Model Number : 09P6
These engines are compact, lightweight and simple to operate - with reduced vibration, quieter operation and enhanced handling.
Click and drag image to rotate.
6.8
Gross Torque (Nm) @ 3060 rpm
140
Displacement (cc)
0.8
Fuel Tank Capacity (L)
Gas
Fuel Type
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
09P6
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Gross Torque* (Nm)
6.8
Engine Displacement (cc)
140
Cylinder
Aluminium
Bore (mm)
63.4
Stroke (mm)
44.45
Fuel Tank Capacity (L)
0.8
Oil Capacity (L)
0.44
Weight (kg)
8.2
Length (mm)
347
Width (mm)
305
Height (mm)
242
Limited Consumer Warranty †
2 Years
*Power levels are stated gross torque at 2600rpm per SAE J1940 as rated by Briggs & Stratton.
†See briggsandstratton.com for warranty details.
