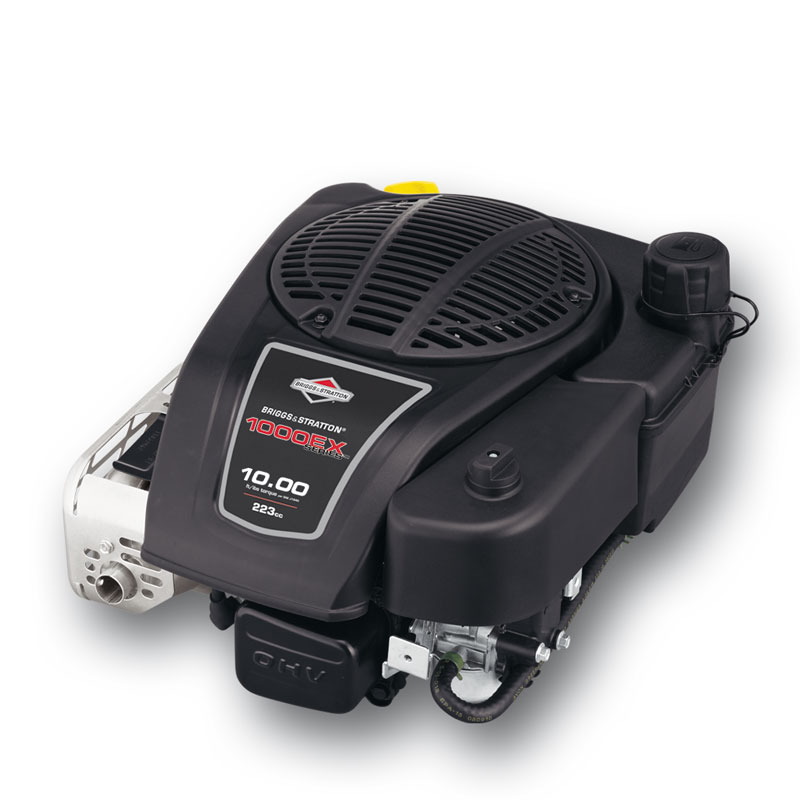

1000EX Series™

1000EX Series™

Performance and value in one unbeatable package. You’ll love the smooth handling of the lightweight, yet powerful EX Series lawn mower engines. Equipped with the ReadyStart® Starting System-no prime, no choke, just pull for power, a best-in-class torque-to-weight ratio, reduced vibration and quieter operation, all while increasing comfort and extending engine life. The EX Series Engines are a great solution to your lawn care challenges.

13.6

Gross Torque (Nm) @ 3060 rpm

223

Displacement (cc)

1.1

Fuel Tank Capacity (L)

Gas

Fuel Type

Features

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
14D9
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Gross Torque* (Nm)
13.6
Engine Displacement (cc)
223
Cylinder
Aluminium
Bore (mm)
74.0
Stroke (mm)
51.3
Fuel Tank Capacity (L)
1.1
Oil Capacity (L)
0.70
Weight (kg)
14.1
Length (mm)
401
Width (mm)
339
Height (mm)
257
Limited Consumer Warranty †
2 Years
Limited Commercial Warranty †
90 Days

*Power levels are stated gross torque at 2600rpm per SAE J1940 as rated by Briggs & Stratton.

†See briggsandstratton.com for warranty details.



Not available for repower.
