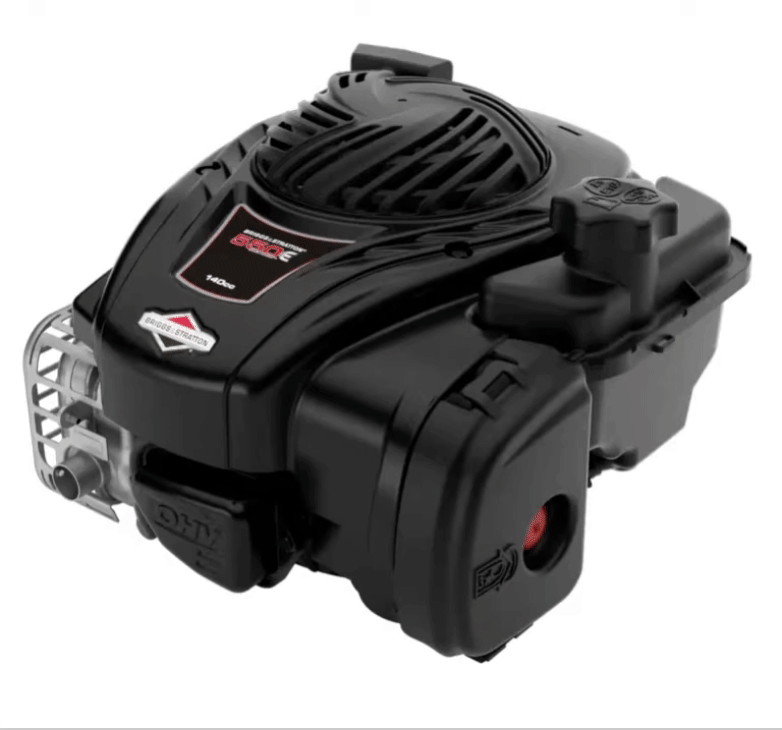

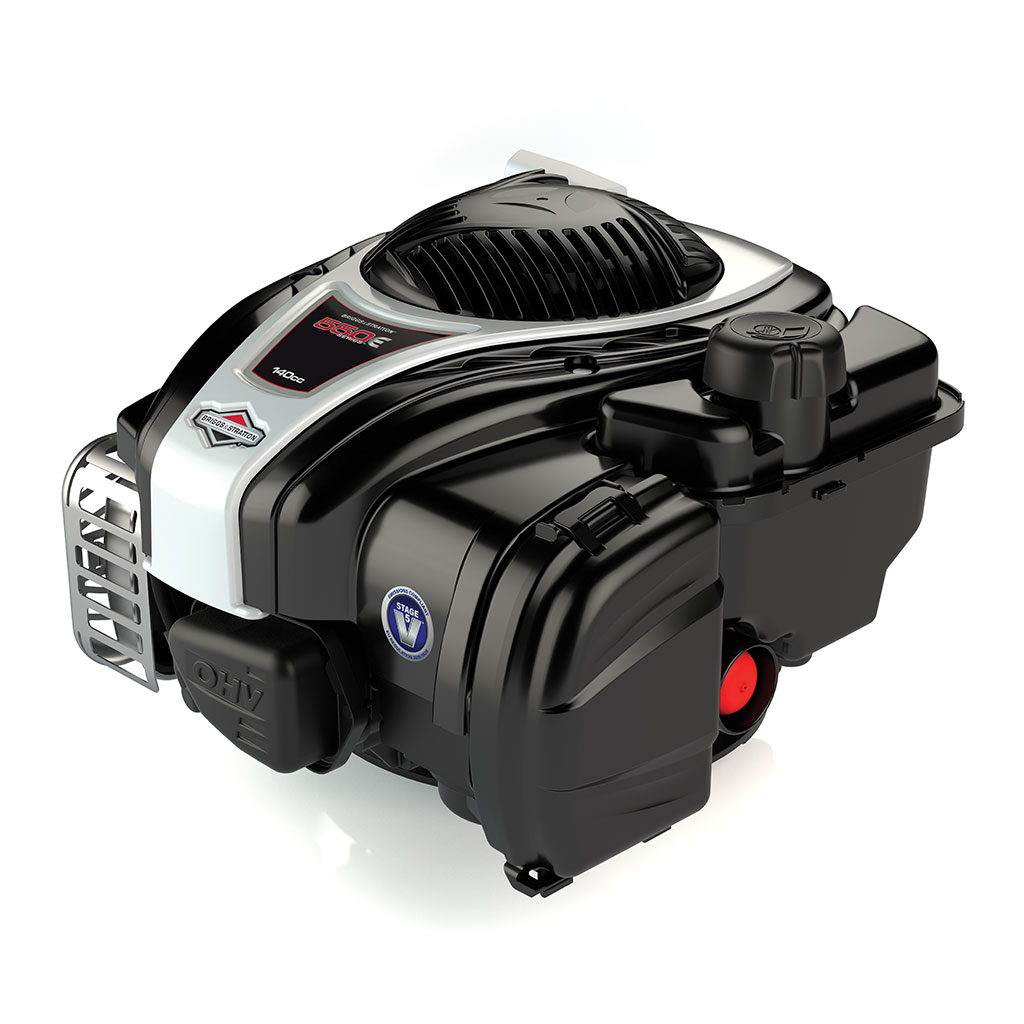

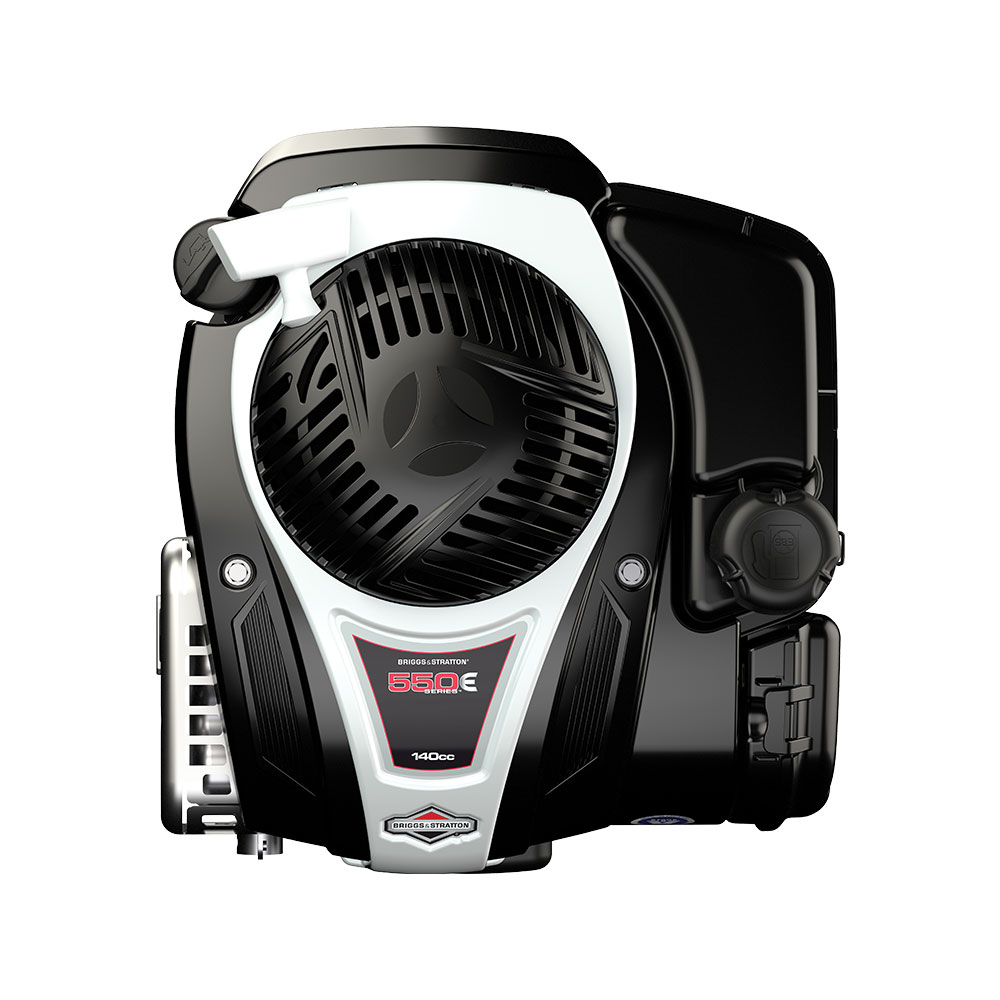

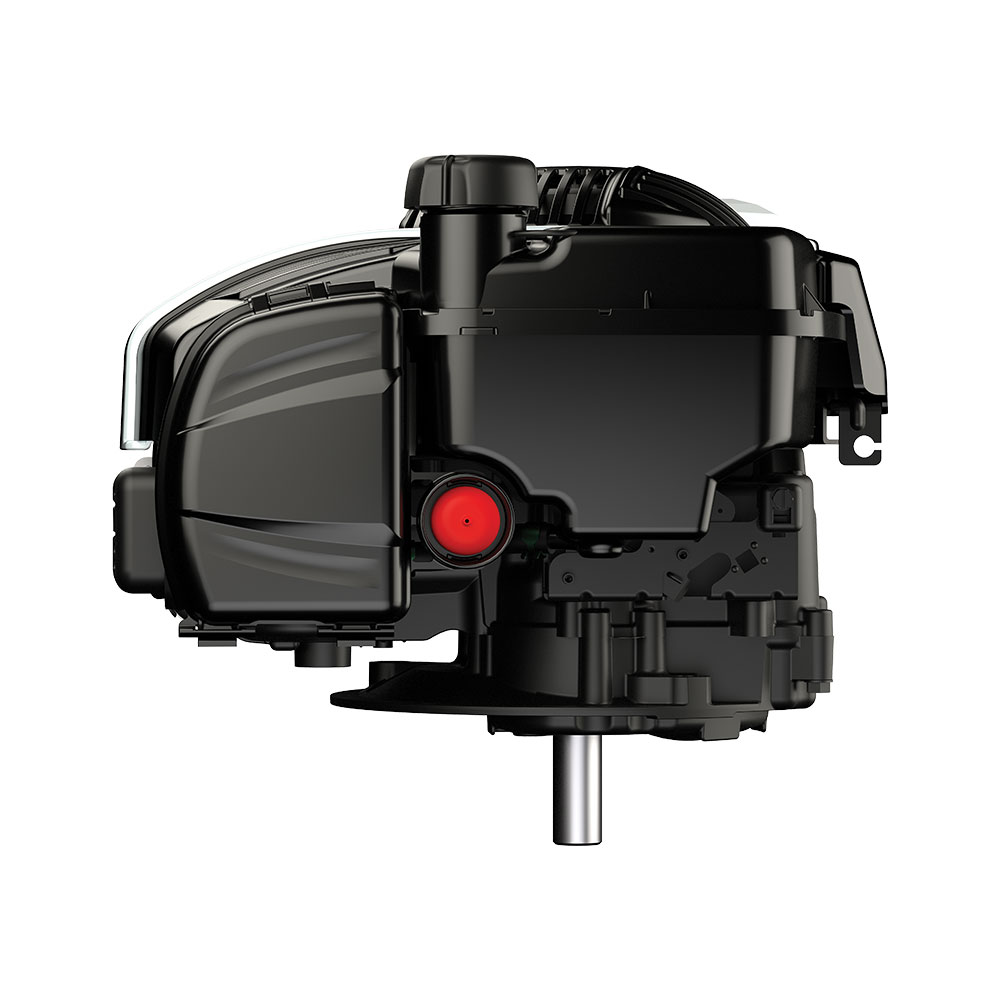

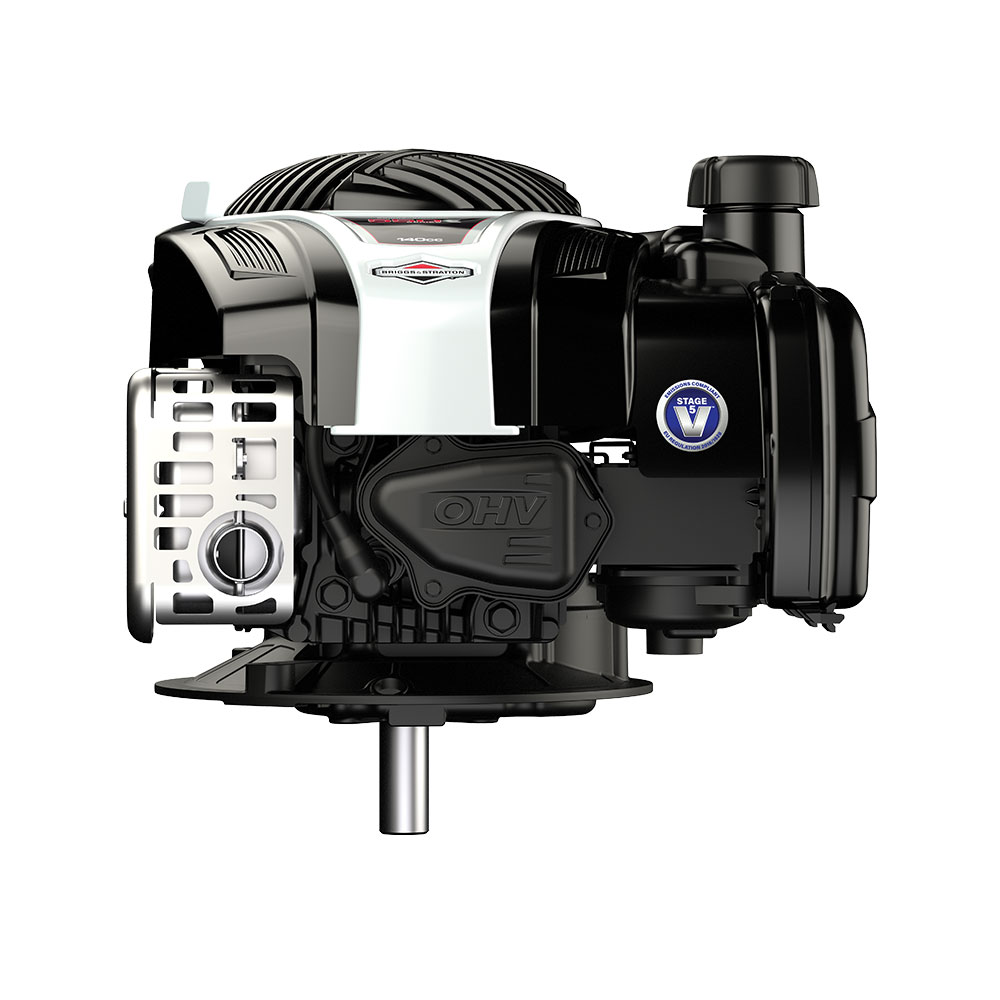

    E Series™ Engines

    E Series Engines
    E Series Engines
    E Series Engines
    E Series Engines
    E Series Engines

    E Series™ Engines

    Easy to use. Exceptional value.

    • Prime n' Pull Start
    • Dura-Lube Splash Lubrication

    4.50 - 5.50

    Gross Torque (ft-lbs)

    125 - 140cc

    Displacement (cc)

    Prime n' Pull™

    Starter

    Gas

    Engine Fuel
    Feature

    Features

    Made in the USA

    Made in the USA of US and global parts.

    Lo-Tone™ Muffler

    Delivers low noise and good tonal quality.

    Tool-less Air Cleaner Cover

    Easy access for filter changes.

    Specifications

    Only 2 products can be compared at once. Please remove one of your selections to compare this product.

    Only 3 products can be compared at once. Please remove one of your selections to compare this product.

    At least one product must be displayed. Please select another option to remove this product

    Model Number
    08P5
    Torque (ft-lbs, gross)*
    4.5
    Displacement (cc)
    125
    Cylinders
    Single
    Engine Configuration
    Vertical Shaft
    OHV Engine
    true
    Length (in)
    13.8
    Width (in)
    12.2
    Height (in)
    9.6
    Weight (kg)
    17
    Stroke (mm)
    1.75
    Oil Capacity (L)
    15
    Lubrication System
    Dura-Lube Splash Lubrication
    Oil Filter
    N/A
    Starter
    Prime n' Pull™
    Air Filter
    Oiled Foam
    Muffler
    Lo-Tone™
    Certified Power Rating
    Download Power Curve
    Power Source
    Gas
    Fuel Tank Capacity
    0.2
    Engine Fuel Type
    Gasoline
    Cylinder Bore Size
    2.36

    *All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
    **All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

    Model Number
    09P6
    Torque (ft-lbs, gross)*
    5
    Displacement (cc)
    140
    Cylinders
    Single
    Engine Configuration
    Vertical Shaft
    OHV Engine
    true
    Length (in)
    13.8
    Width (in)
    12.2
    Height (in)
    9.6
    Weight (kg)
    17
    Stroke (mm)
    1.75
    Oil Capacity (L)
    15
    Lubrication System
    Dura-Lube Splash Lubrication
    Oil Filter
    N/A
    Starter
    Prime n' Pull™
    Air Filter
    Oiled Foam or Dual-Sealing Paper
    Muffler
    Lo-Tone™ or Super Lo-Tone™
    Certified Power Rating
    Download Power Curve
    Power Source
    Gas
    Fuel Tank Capacity
    0.2
    Engine Fuel Type
    Gasoline
    Cylinder Bore Size
    2.50

    *All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.

    Model Number
    09P7
    Torque (ft-lbs, gross)*
    5.5
    Displacement (cc)
    140
    Cylinders
    Single
    Engine Configuration
    Vertical Shaft
    OHV Engine
    true
    Length (in)
    13.8
    Width (in)
    12.2
    Height (in)
    9.6
    Weight (kg)
    17
    Stroke (mm)
    1.75
    Oil Capacity (L)
    15
    Lubrication System
    Dura-Lube Splash Lubrication
    Oil Filter
    N/A
    Starter
    Prime n' Pull™
    Air Filter
    Oiled Foam or Dual-Sealing Paper
    Muffler
    Lo-Tone™ or Super Lo-Tone™
    Certified Power Rating
    Download Power Curve
    Power Source
    Gas
    Fuel Tank Capacity
    0.2
    Engine Fuel Type
    Gasoline
    Cylinder Bore Size
    2.50

    *All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
