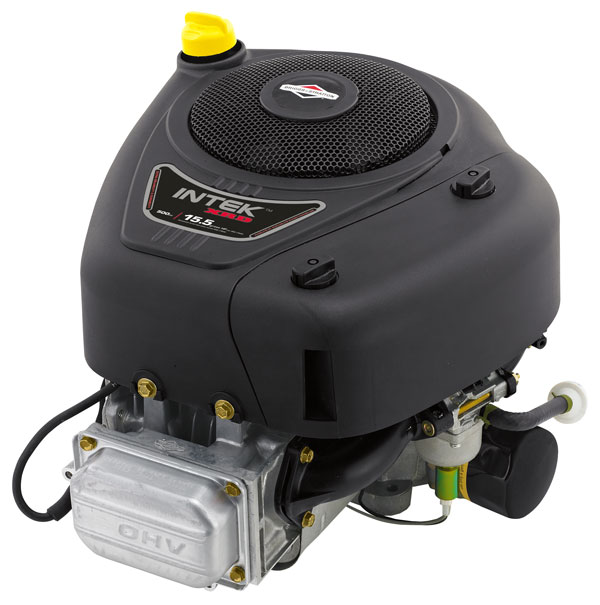

    Intek™ (Single Cylinder)

    Intek Single Cylinder

    Intek™ (Single Cylinder)

    Discover a new standard in reliability. The powerful Intek™ Series riding mower engines deliver superior performance and durability.

    Feature

    Features

    Intek Series™ Riding Mower Engine

    More durable. More efficient. More powerful. Mows the lawn and lasts long.

    Advanced Debris Management System

    Keeps the engine clean by deflecting and ejecting grass and debris for a longer engine life.

    Anti-Vibration System - AVS®

    Provides a smoother ride and more comfort.

    ReadyStart® Engine Starting System

    No prime, no choke, no worries. Just pull for power.

    Specifications

    Only 2 products can be compared at once. Please remove one of your selections to compare this product.

    Only 3 products can be compared at once. Please remove one of your selections to compare this product.

    At least one product must be displayed. Please select another option to remove this product

    Gross Horsepower (ft-lbs)*
    11.5*
    Engine Displacement (cc)
    344
    Length (in)
    452
    Width (in)
    393
    Height (in)
    327
    Weight (lbs)
    26.8
    Stroke (in)
    57.5
    Fuel Tank Capacity (gal)
    2.6 (optional)
    Oil Capacity (oz)
    1.40
    Cylinder Type
    Cast Iron Sleeve
    Bore
    87.3
    Warranty Commercial Product
    90 Days Commercial Limited†
    Warranty Consumer Engine Power Source
    2 Years
    Warranty Commercial Engine Power Source
    90 Days

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.

    Gross Horsepower (ft-lbs)*
    13.5
    Engine Displacement (cc)
    500
    Engine Configuration
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Length (in)
    479
    Width (in)
    393
    Height (in)
    327
    Weight (lbs)
    29.5
    Stroke (in)
    77.8
    Fuel Tank Capacity (gal)
    2.6 (optional)
    Oil Capacity (oz)
    1.40
    Cylinder Type
    Cast Iron Sleeve
    Bore
    90.5
    Warranty Consumer Power Source Info
    2 Years
    Warranty Commercial Power Source Info
    1 Year
    Warranty Consumer Engine Power Source
    2 Years
    Warranty Commercial Engine Power Source
    1 Year

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.

    Gross Horsepower (ft-lbs)*
    15.5
    Engine Displacement (cc)
    500
    Engine Configuration
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Length (in)
    479
    Width (in)
    393
    Height (in)
    327
    Weight (lbs)
    29.5
    Stroke (in)
    77.8
    Oil Capacity (oz)
    1.40
    Cylinder Type
    Cast Iron Sleeve
    Bore
    90.5
    Warranty Consumer Power Source Info
    2 Years
    Warranty Commercial Power Source Info
    1 Year
    Warranty Consumer Engine Power Source
    2 Years
    Warranty Commercial Engine Power Source
    1 Year

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.

    Gross Horsepower (ft-lbs)*
    11.5*
    13.5
    15.5
    Engine Displacement (cc)
    344
    500
    500
    Length (in)
    452
    479
    479
    Width (in)
    393
    393
    393
    Height (in)
    327
    327
    327
    Weight (lbs)
    26.8
    29.5
    29.5
    Stroke (in)
    57.5
    77.8
    77.8
    Fuel Tank Capacity (gal)
    2.6 (optional)
    2.6 (optional)
    Oil Capacity (oz)
    1.40
    1.40
    1.40
    Cylinder Type
    Cast Iron Sleeve
    Cast Iron Sleeve
    Cast Iron Sleeve
    Bore
    87.3
    90.5
    90.5
    Warranty Commercial Product
    90 Days Commercial Limited†
    Warranty Consumer Engine Power Source
    2 Years
    2 Years
    2 Years
    Warranty Commercial Engine Power Source
    90 Days
    1 Year
    1 Year
    Engine Configuration
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Warranty Consumer Power Source Info
    2 Years
    2 Years
    Warranty Commercial Power Source Info
    1 Year
    1 Year

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.
